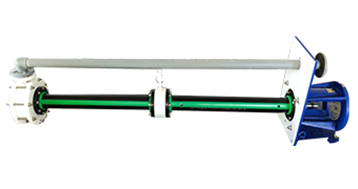

APPV-NON-METALLIC-VERTICAL-PUMPS

• Capacity up to 100 m
• Head up to 50 meters
• Maximum temperature up to 120
• Operating frequency of 50Hz & 60Hz
• Manufactured following the general guidelines of ISO 2858, ISO 5199 & DIN 24256
• Maximum submergence length of up to 4 meters
• Intermediate bearing bush at every 1.0 meter shaft length
• Glass/Bronze/Carbon filed Teflon bush can be provided
• Silicone Carbide bush/Special slurry application bush can be provided for slurry application
• Internal/External flushing provided
• Mechanical seal arrangement can be provided if required

PP, PVDF, PTFE, Ceramic, etc.

All chemicals & acid manufacturing plants, Steel & Power plants, petrochemical industry, Pharmaceutical & Solvent industry, Nuclear power plants, Pulp & paper plants, Sugar mills, etc. All applications that requires the transfer of aggressive and corrosive fluids from negative suction
