Molten Salt Heaters & Valves Manufacturer

Specially engineered and manufactured immersion heaters and sealed valves for Molten Salt application suitable for operation up to 900°C for Heaters and 600°C for Valves.

MOLTEN SALT HEATERS & VALVES

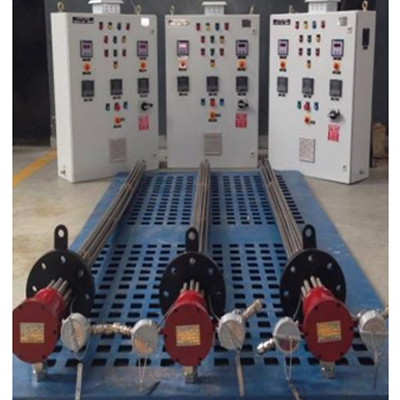

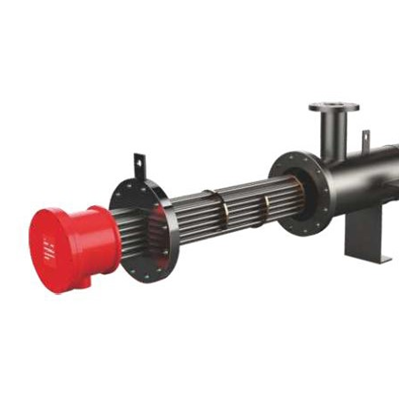

HEATERS

Flanged heaters for heating liquids and gases. The certified enclosure is produced in carbon or stainless steel.
Upto 36” flange acc. ANSI B 16.5; material carbon steel, high alloy steel, nickel alloy, monel, inconel, incoloy, etc.
Degree protection of the enclosure IP65-66-67
Standard diameter of heating elements; 8. 5,12. 5, 16 mm
Material of elements fe35.2, st.st304, 316, 321, Alloy 800, 825, Alloy 600, 625, Hastelloy
Immersion length upto 3000 mm

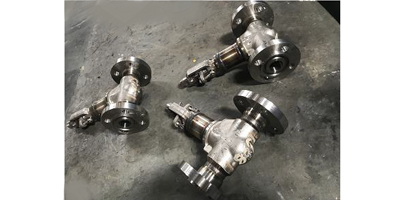

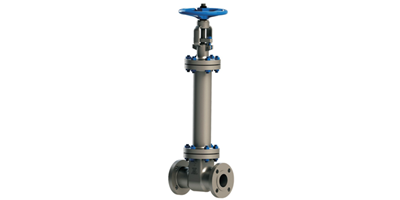

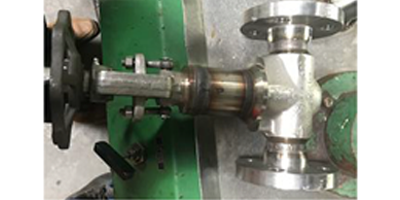

VALVES

Flange type valves with forged bodies
Material of construction SS316L, Alloy 800, 600, 625, Hastelloy, etc.
Flange rating as per ASA 150, ASA 300, ASA 600
Stem sealed to avoid leakage of High temperature molten salt
Specially engineered metallurgy of stem seal to provide longer life in Molten Salt
